GoodWe’s ET series three-phase hybrid voltage converters are equipped with two MPP trackers as standard and allow the connection of high-voltage batteries. This inverter is immune to grid failure, providing the perfect backup for the home and business.

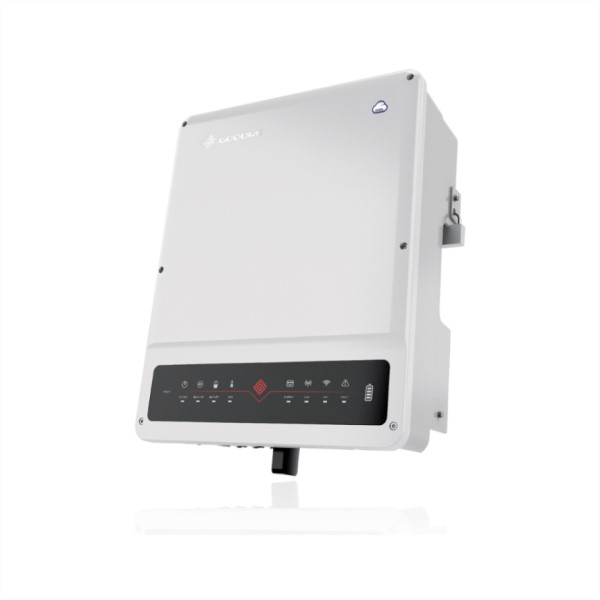

The GoodWe 10K-ET Plus+ 2xMPPT three-phase hybrid inverter offers 2 separate outputs. The first output connects the house phase and the second output connects the back-up appliances to operate in the event of a grid failure. As long as the inverter is connected to the grid, it supplies power to both outputs. In the event of a mains failure, it only supplies power to the second output. The switchover to backup mode takes place within milliseconds, making the inverter function as an UPS (Uninterrupted Power Supply).

Of course there is a free power plant monitoring system (PV power and battery status) via Wi-Fi. The inverter can be set up as counter-current-free. The batteries can be charged from the AC side (from the distributor’s network). The inverter is also able to operate without batteries connected.

• About the product

  • Memory system: Hybrid-WR
  • Weight: 24 kg
  • MPP max voltage: 850.0 V
  • Power connector: 3-phase
  • Number of MPPT: 2 pieces
  • MPP voltage min.: 200.0 V
  • Dimensions in mm: L: 180 mm, W: 415 mm, H: 516 mm
  • Topology: transformerless
  • Rated power: 10 000 VA
  • DC connector: MC4
  • SVT code: SVT32268

• Your benefits

  • The inverter is asymmetrical, waterproof and dustproof
  • Degree of protection IP65
  • Integrated charger and voltage converter
  • Compatible with Pylontech, GoodWe, BYD high voltage batteries
  • Quiet operation without fans
  • Smart home integration
  • The device operates both in grid-connected mode and independently of the distribution network
  • WiFi module and Smartmeter included
